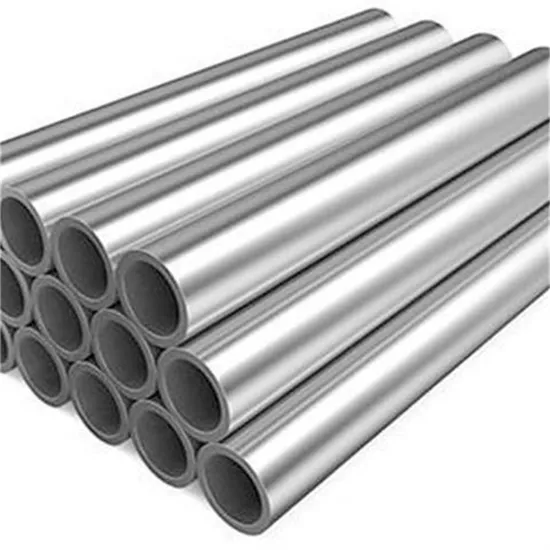

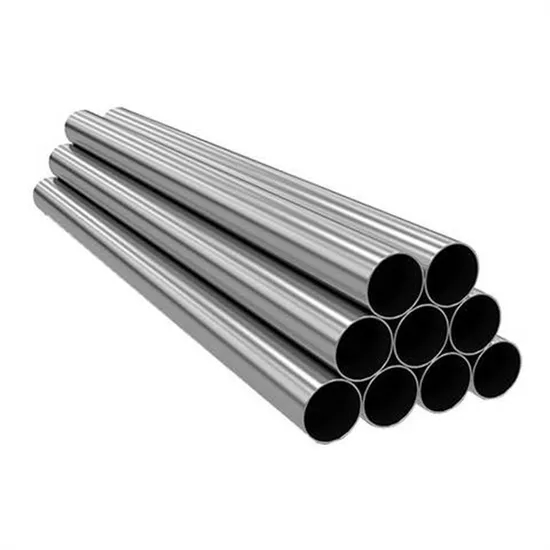

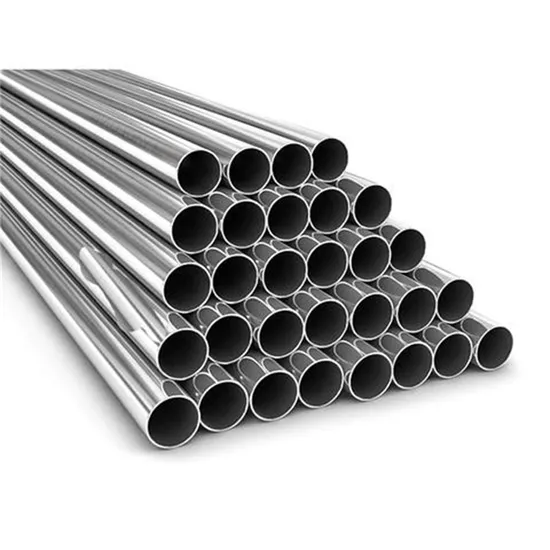

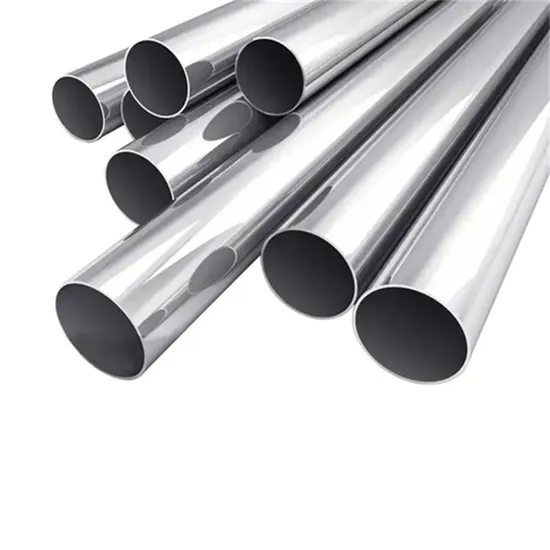

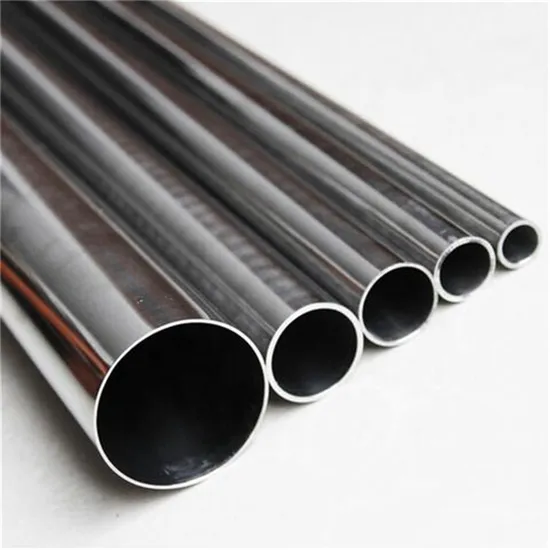

The Inconel 600 seamless tube is a premium nickel-based alloy pipe manufactured according to ASTM B168 standards, identified by UNS N06600 and material number 2.4816. Known for its excellent high-temperature resistance, corrosion resistance, and mechanical strength, this alloy pipe is widely used in industries such as petrochemical, aerospace, nuclear, and high-temperature equipment manufacturing. This article provides a detailed introduction to the features, technical specifications, and applications of the Inconel 600 seamless tube.
Inconel 600 is a nickel-chromium-iron alloy with high nickel content, combined with chromium and iron along with minor elements that provide outstanding oxidation and corrosion resistance. The seamless manufacturing process ensures the pipe has no weld seams, which enhances the strength and longevity of the pipe, making it ideal for high-temperature and high-pressure environments.
| Alloy Name | Inconel 600 |
|---|---|
| Standard | ASTM B168 |
| UNS Number | N06600 |
| Material Number | 2.4816 |
| Main Elements | Nickel (Ni), Chromium (Cr), Iron (Fe) |
| Form | Seamless Tube |
| Operating Temp. | Approx. -253°C to +1093°C |
| Key Features | High-temperature strength, oxidation resistance, corrosion resistance, stress corrosion resistance |
Inconel 600 seamless tubes maintain excellent mechanical strength and stable chemical composition, allowing reliable performance in extreme conditions. Typical properties are summarized below:
| Property | Value | Unit |
|---|---|---|
| Density | 8.43 | g/cm³ |
| Melting Point | Approx. 1350 - 1410 | °C |
| Tensile Strength | ≥ 690 | MPa |
| Yield Strength | ≥ 275 | MPa |
| Elongation | ≥ 30 | % |
| Hardness (Brinell) | 217 - 302 | HB |
| Element | Content (%) |
|---|---|
| Nickel (Ni) | 72.0 - 80.0 |
| Chromium (Cr) | 14.0 - 17.0 |
| Iron (Fe) | 6.0 - 10.0 |
| Manganese (Mn) | ≤ 1.0 |
| Carbon (C) | ≤ 0.15 |
| Silicon (Si) | ≤ 0.5 |
| Sulfur (S) | ≤ 0.015 |
Petrochemical Industry: Pipes and equipment parts exposed to high temperature and pressure
Aerospace: Engine components and high-temperature structural parts
Nuclear Industry: Radiation-resistant and high-temperature tubing
Heat Exchangers and Boilers: Tubes in high-temperature corrosive environments
Chemical Processing Equipment: Pipes resistant to acid, alkali, and corrosive media
Outstanding high-temperature strength and oxidation resistance
Excellent corrosion and stress corrosion cracking resistance
Seamless design ensures enhanced strength and leak-proof performance
Good machinability with weldability and formability
Consistent chemical composition for reliable performance
Inconel 600 seamless tubes offer excellent high-temperature strength, corrosion resistance, and good mechanical properties, making them ideal for harsh environments involving extreme heat and corrosive conditions.
ASTM B168 specifies the requirements for nickel alloy seamless and welded tubes, including chemical composition, mechanical properties, dimensional tolerances, and testing methods to ensure consistent product quality.
The operating temperature range is approximately from -253°C up to 1093°C, making it suitable for various high-temperature applications.
Yes, Inconel 600 is weldable with common methods like TIG and MIG welding, and it maintains good mechanical properties after welding.
Inconel 600 is primarily identified by its specific chemical composition and UNS number N06600. Its high nickel content along with particular chromium and iron ratios distinguish it from other nickel-based alloys.
For customized Inconel 600 seamless tubes or to inquire about detailed technical specifications and pricing, please feel free to contact us. We offer professional support and quality service tailored to your needs.
