Dengwei International Trade is mainly engaged in various high-end steel import and export businesses, and is a brand enterprise in the metal circulation industry.
 |
| Quantity: | |
|---|---|

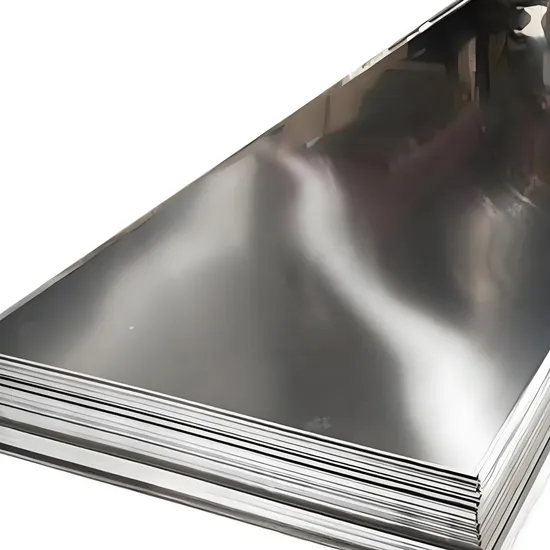

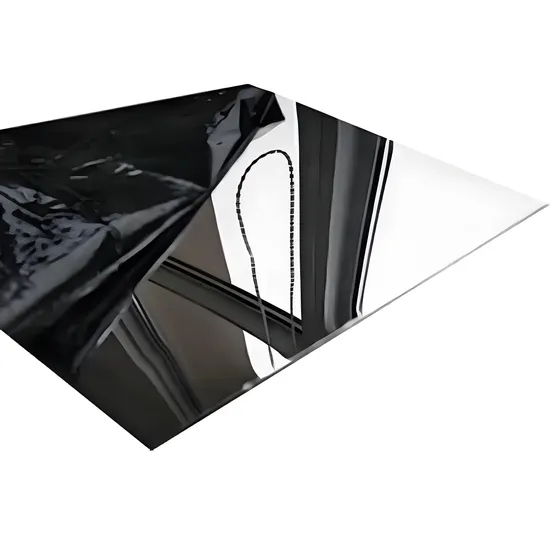

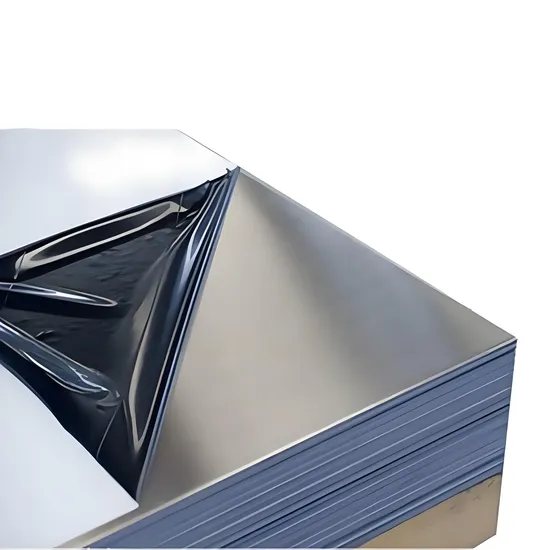

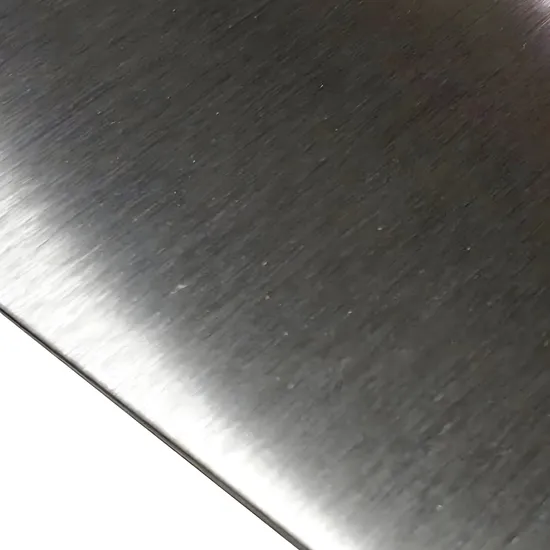

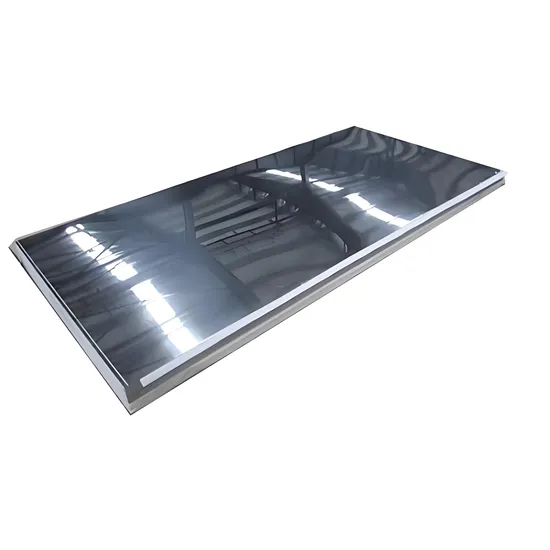

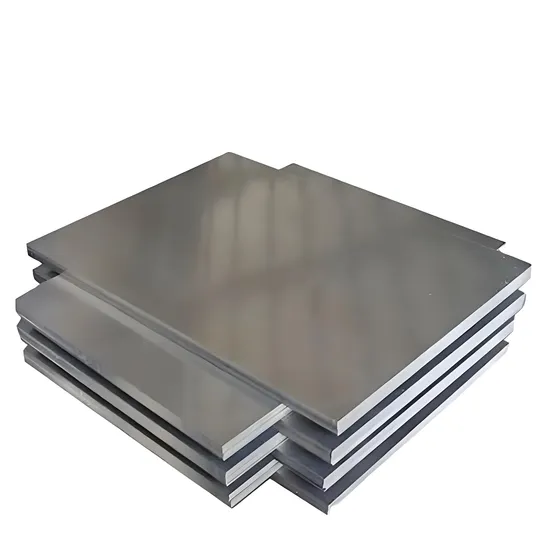

Inconel 718, also known as GH4169 or UNS N07718, is a nickel-chromium alloy designed for exceptional strength, corrosion resistance, and performance at high temperatures. This alloy plate is commonly used in aerospace applications such as turbine discs, jet engines, exhaust systems, and structural components operating under extreme thermal and mechanical stress.
Excellent tensile, fatigue, and creep-rupture strength
Good weldability and fabrication properties
Oxidation and corrosion resistance in high-temperature environments
Maintains mechanical integrity up to 700°C (1292°F)
Available with OEM cutting, surface finishing, and machining
| Element | Content (%) |
|---|---|
| Nickel (Ni) | 50.0 – 55.0 |
| Chromium (Cr) | 17.0 – 21.0 |
| Iron (Fe) | Balance |
| Niobium (Nb) + Tantalum (Ta) | 4.75 – 5.50 |
| Molybdenum (Mo) | 2.80 – 3.30 |
| Titanium (Ti) | 0.65 – 1.15 |
| Aluminum (Al) | 0.20 – 0.80 |
| Property | Value |
|---|---|
| Tensile Strength | ≥ 965 MPa |
| Yield Strength (0.2% offset) | ≥ 550 MPa |
| Elongation | ≥ 30% |
| Hardness | ≤ 363 HB |
| Operating Temperature Range | -253°C to 700°C |
ASTM B670 / B637
AMS 5596 / 5662 / 5663
UNS N07718
GB/T 14992 (GH4169)
Aerospace turbine engines and combustion chambers
Jet engine parts: discs, shafts, and blades
Gas turbine components
Nuclear and cryogenic systems
Automotive turbochargers and exhaust manifolds
| Thickness | Width | Length | Tolerance |
|---|---|---|---|
| 3 mm – 60 mm | Up to 1500 mm | Up to 6000 mm | ±0.1 mm (customizable) |
Hot rolled or cold rolled plate
Annealed or solution-treated
Waterjet cutting, laser cutting, CNC milling
Surface finishing: bright, pickled, or polished
GH4169 is the Chinese designation equivalent to the international alloy Inconel 718. Both share the same chemical composition and mechanical properties.
Yes, Inconel 718 maintains excellent ductility and toughness even at cryogenic temperatures down to -253°C.
We provide EN 10204 3.1 / 3.2 certification, as well as certifications according to ASTM, AMS, and customer-specific aerospace requirements.
Yes, we offer full OEM support including custom plate cutting, surface treatment, and CNC precision machining based on your drawings.
