11 Gauge Steel Thickness Explained: Uses, Conversion & Comparison11 gauge steel is a standard material thickness commonly used in industries such as construction, automotive, manufacturing, and metal fabrication. Understanding how thick 11 gauge steel is—and how it compares to other gauges—helps professionals make accurate material choices, ensure proper structural support, and meet performance standards in different applications. This guide offers detailed information on the thickness of 11 gauge steel in inches and millimeters, common conversions, comparisons, uses, and FAQs to support engineers, contractors, and metalworkers.
Gauge is a non-linear measurement system used to define sheet metal thickness. In this system, a lower gauge number means thicker metal. However, the actual thickness varies depending on the type of metal, such as carbon steel, galvanized steel, or stainless steel. For 11 gauge steel, the values differ slightly by material type:
Mild Steel (Carbon Steel): 0.1196 inches or approximately 3.038 mm
Stainless Steel: 0.1250 inches or approximately 3.175 mm
Galvanized Steel: Approximately 0.1382 inches or 3.51 mm
This difference is due to coating thickness, composition, and manufacturing tolerances.

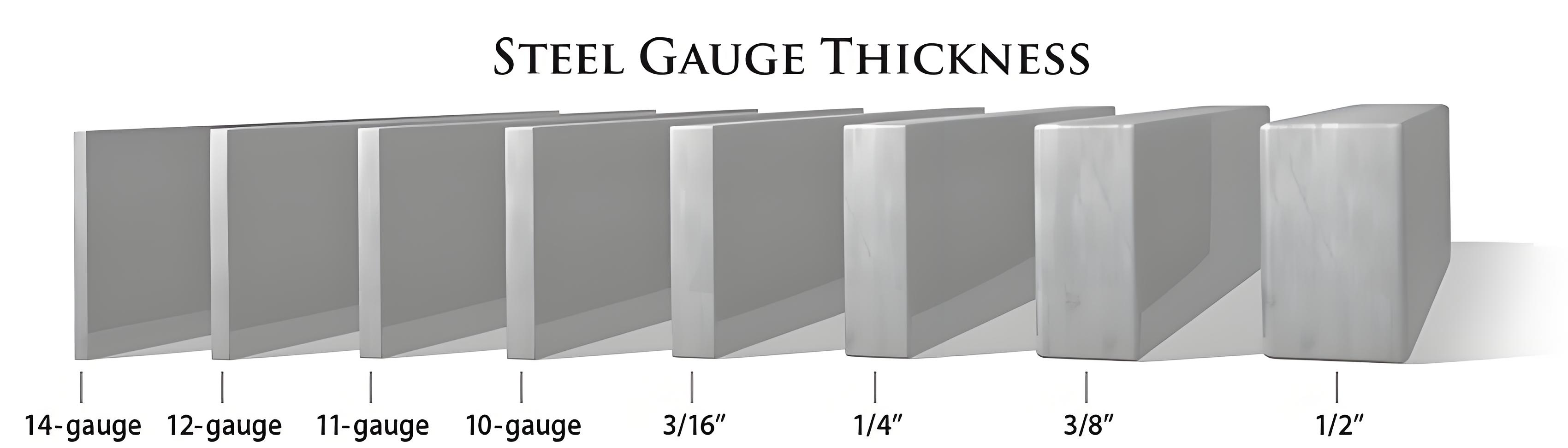

| Gauge | Thickness (inches) | Thickness (mm) | Material |
|---|---|---|---|
| 10 | 0.1345 | 3.416 | Carbon Steel |
| 11 | 0.1196 | 3.038 | Carbon Steel |
| 12 | 0.1046 | 2.657 | Carbon Steel |
| 11 | 0.1250 | 3.175 | Stainless Steel |
| 11 | 0.1382 | 3.51 | Galvanized Steel |
The gauge system is critical in sheet metal fabrication as it determines the structural load-bearing capacity, flexibility, and suitability of a material for specific applications. Thicker materials (lower gauge) provide higher tensile strength and resistance to deformation, making them ideal for heavy-duty applications. However, they also increase the weight and cost of the final product, which must be balanced according to design requirements.
Structural Components: Used in bridges, buildings, and support frameworks where durability is crucial.
Automotive Industry: For parts like truck beds, chassis, and protective underbody panels due to its resistance to wear and impact.
Industrial Equipment: Machine housings, guards, and heavy-duty racks benefit from 11 gauge steel's balance of strength and manageability.
Agricultural Equipment: Often found in plow parts, enclosures, and reinforced attachments for field use.
Security Barriers: Doors, grilles, and fencing that require tamper resistance and physical protection.
Fabricating 11 gauge steel requires appropriate tools and processes. Cutting can be done using plasma cutters, laser machines, or industrial shears. Welding methods like MIG and TIG are commonly used depending on the application. The material's thickness allows it to be formed into structural shapes while still maintaining its integrity.
Additionally, depending on the environment, 11 gauge steel may require surface treatments such as powder coating, galvanization, or painting to improve corrosion resistance and aesthetics.
Yes, but for better durability in outdoor or corrosive environments, coatings or stainless steel versions are recommended.
For carbon steel, 11 gauge weighs approximately 5.00 lbs per square foot (24.41 kg/m²).
Not necessarily. While thicker steel provides more strength, it also adds weight and cost. The best choice depends on the application’s structural and economic requirements.
Yes, with the right equipment such as a press brake, 11 gauge steel can be bent. However, its thickness requires sufficient force and tool capacity.
Gauge thickness is standardized by organizations like ASTM and the American Iron and Steel Institute (AISI), although slight variations exist between different material types.
11 gauge steel offers a reliable combination of thickness, strength, and versatility for a wide range of industrial and commercial applications. By understanding its precise measurements and appropriate uses, engineers and fabricators can make informed choices that improve performance and cost-efficiency. Whether you’re designing heavy-duty equipment, constructing frameworks, or fabricating parts, knowing how 11 gauge steel performs helps deliver successful results.
